Trenchless Technology Solution
Our High Pressure Water Pumps are perfect for your Hydro Excavation needs. It reduces the risks of damaging underground pipelines and cables compared to traditional digging and drilling techniques. Also used for locating underground services where the area is unknown specially where the assets have not been identified on site plans or where the risks of damage is high.
No Dig Equipment supplies range of Hydro-excavation pumps, lances, nozzles, and high pressure hose. Our pumps are durable, easy to use, and cost effective, combined with an electronic clutch for efficient and cost effective operation.

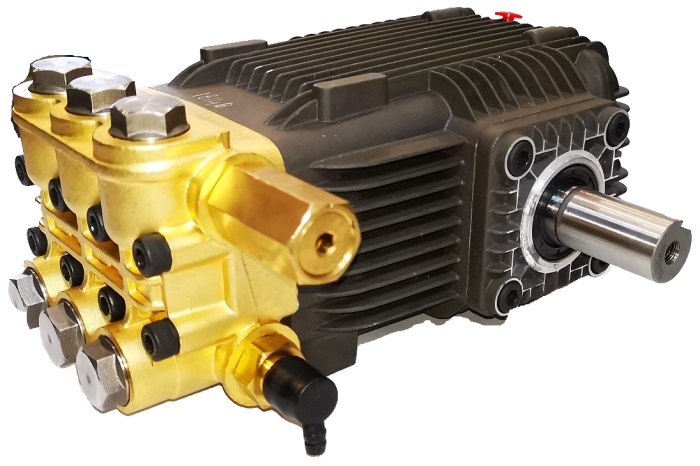

The 1814B High Pressure Water Pump has 18mm ceramic pistons that can produce a 3500 PSI at flows of 15 liters per minute. It is designed to run at a speed of 1450 rpm on 24 mm shaft. The pump is fitted with high quality Japanese bearings, Parker seals, thermal relief valve and a pressure relief valve.
Shipping weight of this unit is 9.5 kilograms. This pump is powered by our Kohler Diesel engines and used for large capacity Vacuum Units like VM850, VM2000, VM3000, and VM4500.

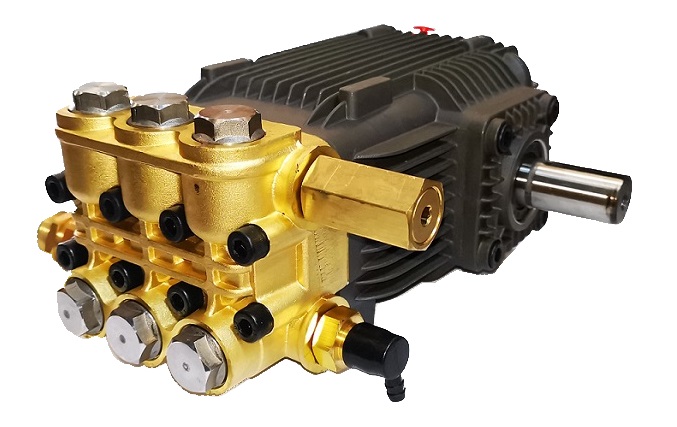

The 1807B High Pressure Water Pump has 18mm ceramic pistons that can produce a 2500 PSI at water flows of 10 liters per minute. This pump is designed to run at a speed of 2800 rpm. It is driven through a standard on 24 mm shaft and has high quality Japanese bearings, Parker seals, thermal relief valve, pressure relief valve fitted as standard.
Shipping weight of this unit is 9.5 kilograms. This pump is powered by either Petrol or Diesel Engine and is mainly installed in our general purpose VM400 vacuum machine.
Clutch

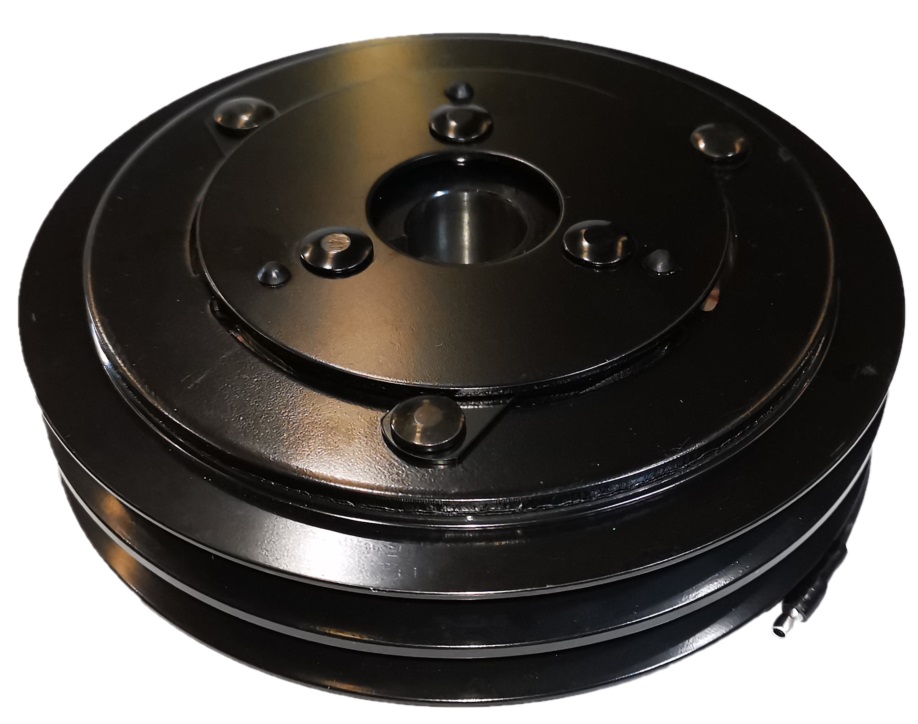

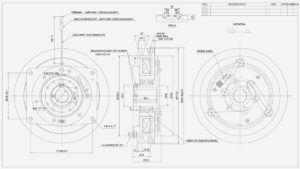

Our Mobile electric clutch provides reliable performance in all of our high pressure water pumps. It uses the Electro-Magnetic technology to engage the input and output members of the clutch on a single plate friction surface.

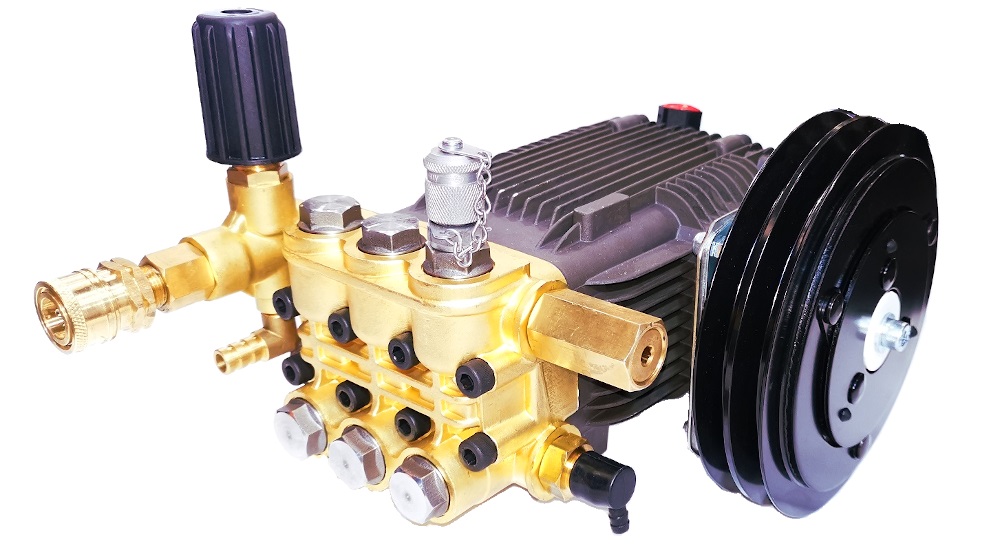

All of our machines are equip with this type of clutch. Users can shut off the water pump and concentrate on use of Vacuum Machine only or turn on the clutch for simultaneous use. The use of clutches helped to modernize this application, providing the end user energy and cost savings.
Other Parts you might be needing
Bolt-on unloader-External bypass with pressure adjustable model is a forged brass body and a water inlet 3/8 inch
Test cable with coupling fore connecting the the pressure gauge to the pressure water pump
Various sized orifice to suite different horse power washers. Just mention the model of your Vacuum Machine and we can help you with that.
Analogue Positive Pressure Gauge Bottom Entry 400bar, with connection size G 1/4 BSPP
Analogue Positive Pressure Gauge panel mount with Rear Entry 400bar, with connection size of G 1/4
Our Pressure Water Trigger with 1.5 metre long lance with quick release fittings is specifically designed for deep excavation use.
Water pressure hose with up to 4000 psi, 10 meter Hose complete with quick release couplings and 3/8 bsp hose tail ends.
Heavy Duty Retractable Hose Reel extends 15 metres of 5/16 abrasion resistant 4000 psi hose
To inquire about price, availability or order, please call 08 9493 0642 or email sales@nodigequipment.com.au
