Suction Hose Assembly

Available in two sizes, The SH75 and SH100 are heavy duty suction hose specifically designed for Hydro-Vacuum Excavation needs. These are a lightweight and highly flexible composition of high Nitrile/PVC compound, making this hose well suited for transferring abrasive slurries to waste tank.

It features Black High Nitrile content PVC hose with highly visible yellow raised rigid PVC helix for high durability and flexibility. Smoothbore to reduce friction and abrasion for excellent suction and UV stability.

Complete with Camlocks and clamps on various lengths depending on Hydro Vacuum Machines, also available an Extension suction hose with standard 10-meter length or as per order.

GENERAL INFORMATION
PRODUCT CODEInside Diameter (mm)Outside Diameter (mm)Min Bend Radius (mm)Vacuum Rating (mm hg)
SH7576.093.4400800
SH100102.0118.0600800

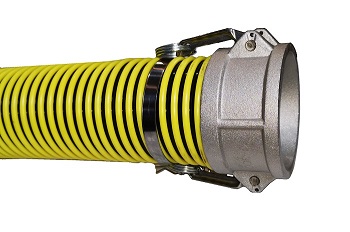

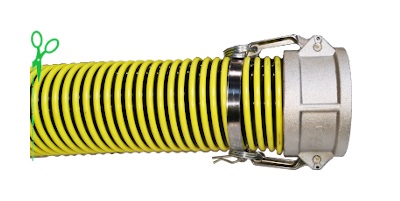

End to end Suction Hose

Suction Hose and Parts

Aluminium Camlock 4 inch Type E

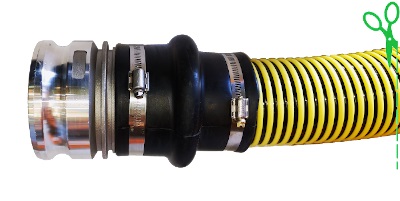

Heavy Duty Rubber Hump Hose adaptor

Aluminium Camlock 3 inch Type C

Various sizes of Stainless Steel Ring Clamps

Aluminium Camlock 3 inch Type E

Heavy Duty Suction Hose

To inquire about price, availability or order, please call 08 9493 0642 or email sales@nodigequipment.com.au
